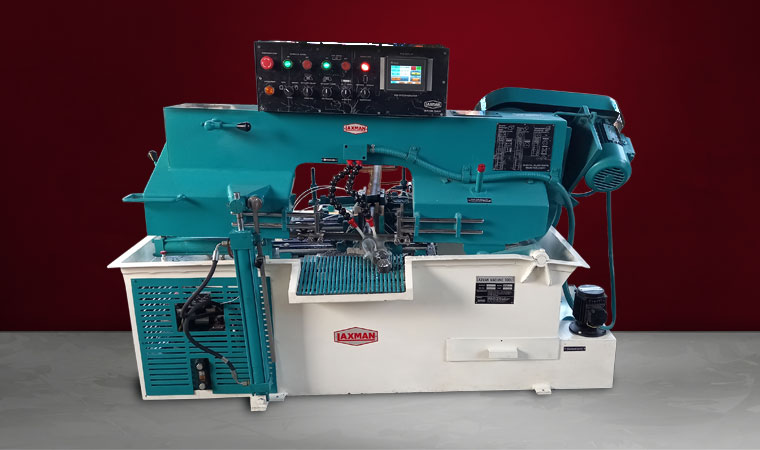

Laxman NC Fully Automatic Horizontal Hinge Type Metal Cutting Bandsaw Machine
Excellence is our Passion
Model NC Auto BLM hs1 Fully automatic band saw
Technical Specification
| Model | Auto BLM HS1 | Auto BLM HS2 | Auto BLM HS3 | |
|---|---|---|---|---|
| Round | MM | 200 | 300 | 350 |
| Square | MM | 175 X 175 | 250 X 250 | 300 X 300 |
| Rectangular | MM | 200 X 140 | 350 X 140 | 400 X 150 |
| Shuttle Vice Stock | MM | 200 | 300 | 300 |
| Servo Motor | 750W | 750W with Gear Box | 750W with Gear Box | |
| Saw Drive Motor | 1 HP, 1440 RPM IE2 Motor | 1.5 HP/2HP 1440 RPM IE2 Motor | 2 HP/1.5HP 1440 RPM IE2 Motor | |
| Hydraulic Motor | 1 HP, 1440 RPM IE2 Motor | 1 HP, 1440 RPM IE2 Motor | 1 HP, 1440 RPM IE2 Motor | |
| Coolant Pump | 0.15 H.P., 440 Volts | 0.15 H.P., 440 Volts | 0.15 H.P., 440 Volts | |
| Blade Speed | Meter/Minute | 20,35,55,75 | 20,35,55,75 | 20,35,55,75 |
| Saw blade-bi-metal | MM | 3000 x 27 x 0.9mm | 3760 x 27 x 0.9mm | 4100 x 34 x 1.1mm |
| Floor space L x W x H | MM | 1630 x 900 x 1070 mm | 2400 x 1150 x 1250 mm | 2550 x 1150 x 1250 mm |
| Net weight | KG | 560 | 750 | 820 |
| Standard Accessories | saw blade motor, coolant pump, Hydraulic Motor, Servo Motor, Hydraulic Tank without oil, Hy. Solenoid Valve, Hy. Pump, Push Button, HMI, PLC, Proxy, Switchgear with electric fittings, , Chip removing tray, chip removing brush, Pully , V- Belt, short bar support, Vice harden Plate, One bi metal blade, Gearbox Oil, etc. | |||
| Extra Accessories/ Optional | ||||
| Variable speed A/c Drive For blade saw | ||||
| Bar Feeding Stand | ||||
| Wood Box Packing | ||||
Feature
- Job counter/ Reset available / Actual counting / Digital Length setting/ Auto shut down as per counter/Automatic lubrication system/Automatic multi stock and length adjustment/Empty vice detection system
- Automatic Machine cycle & saw motor “OFF”, in case of Blade Breakage or slippage. Blade size 3000L x0.9T x27W mm Blade tension manual hand operated
- Mounted Electrical Control Panel with PLC to easy maintenance, operating and handling.
- Stepper Motor & Ball screw nut operated shuttle Vice For job feeding, Shuttle Vice Max 200mm stock length , automatic Multi stock possible, Vice harden plate available
- Mounted Hydraulic Tank , Hydraulic Operated Vice clamp and decamp & Ram Up and down Movement
- Mounted Electrical Control Panel easy maintenance, operating and handling
- Job length, JobCounter/ blade safety timer/Vice opening timer setting, Automatic Lubrication setting possible directly from switch board Plc screen
- with electric fittings Chip removing tray, chip removing brush, One bi metal blade.
