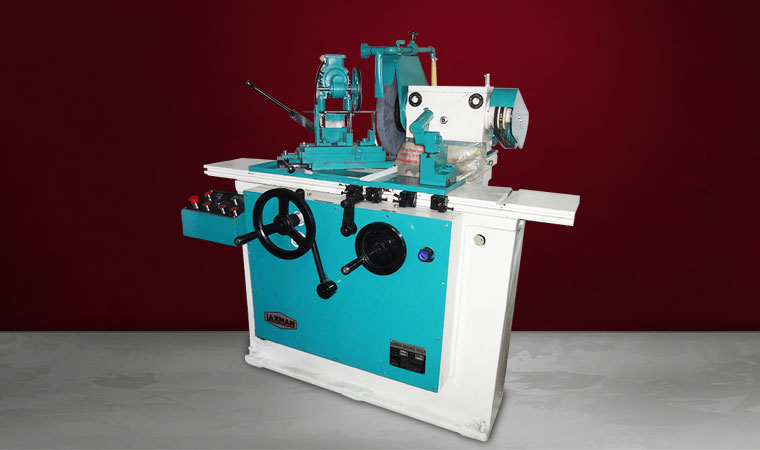

Laxman Ball Point Grinding Machine

Nc Internal-Grinding-machine

Our company manufactures and supplies a precisely designed range of Ball Point Grinders under the brand name Laxman. These grinding machines are used to grind different length and diameter of cylindrical jobs with accuracy in production. In ball point grinder, one can grind a ball at the end of cylindrical Job.

Our Machines in this range are provided with following Specifications:

  • Maximum Length of job: 550mm
  • Min. dia. of job: 5mm
  • Minimum Length of job: 40mm
  • Max. dia. of job: 30mm
  • Grinding wheel size: 350mm x 25mm x 127mm
  • Floor space LxWxH: 700mm x 1000mmx1400mm
  • Weight: 900kg
