Grinding wheel, Regulating wheel, Wheel Flange, Coolant pump, Magnetic Filter with Tank, HMI, PLC, Switch Gear, Push button, Penal Board with Ele fittings, Grinding wheel Motor, Regulating wheel motor, Servo Motor, Lubrication Motor ,Pulleys , V belt, VFD fitting in regulating Wheel Head., Through feed & In feed Blade etc.
Wheel Balancing stand and arbor, Extra Grinding Wheel Flange, Extra Throofeed Blade, VFD in grinding wheel head, Paper band Filter, Machine Lamp, Auto Loading / Unloading/ Feeder/ Vibrator / Job injector, etc..

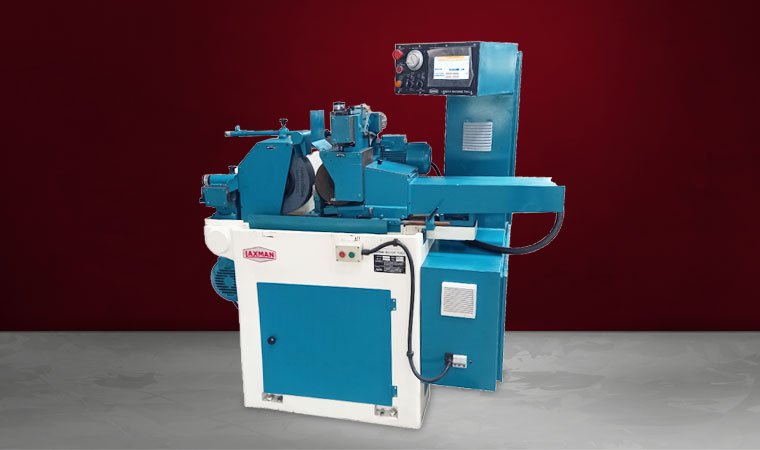

LM 2 Meet The Criteria For High Productivity Centerless grinding , the Machine is suitable for both in-feed and Thru-Feed Grinding of small size parts, Machine designed for take high accuracy with high load caring capacity.
Grinding Wheel Head
Grinding wheel driven by V belt drive and cartridge preload Hi precision bearing spindle for achieve best grinding performance, achieve good surface finish and hi radial accuracy.
Regulating wheel Head
Regulating wheel control by direct couple gear box with A/c variable speed control drive and cartridge preload precision bearing spindle for achieve best grinding performance and hi radial accuracy for every size of jobs.
Regulating wheel head have adjustable inclination angle and swivel angle for adjust job feeding rate and Grinding cutting position.
Base slide have Preload Roller Type LM Guide way get hi rigidity and best grinding performance.
hand scrapped Upper dovetail slide design reinforce the feeding stability & rigidity in regulating wheel head. also have manual Lock Arrangement for upper slide .
Both slide and Ground Ball screw nut have central Automatic Lubrication system for smooth sliding.
Lubrication system have Low Oil level and low Oil presser indication on Hmi.
Main slide control by Ball screw and nut, servo motor, Servo planetary gearbox, HMI, PLC and MPG for accurately traveling.
Heavy duty and high weight slide move with Smooth and accurate traveling in low power consumption is possible by Servo Planetary Gearbox.
MPG give hi accurate and fast offset setting for grinding setup.
Also give selecting Accurate feeding Pulse in 1micron, 10micron, 100micron.
Auto in-feed grinding cycle possible with adjustable Rapid stock, cutting feed and spark out, return cycle timing, lubrication timing.
Both Dressing slide Control by Gear Motor with A/c Variable speed control drive, LM Guide way and ball screw to get fine feeding and long life dressing for good ra value in jobs
Both Dressing Slide have Spring Loaded Pilot operated Temples dressing which can give accurate straightness in grinding wheel and Regulating wheel.
Regulating wheel dressing slide have truing( swivel) angle and taper( inclination) angle.
Machine Have Aprox 50L Coolant tank , coolant tank have 3 partition for separate dust in coolant , Coolant tank have 35L Magnetic Coolant Filter for remove magnetic particles (Optional) Tank have 0.15hp pump Which can give 35L displacement of coolant .
